The Bantam Tools Desktop CNC Basic Vise is an affordable, versatile, and reliable fixturing accessory that’s simple and easy to use. This aluminum vise offers rigidity that’s suitable for high-speed and high-precision machining jobs using our Bantam Tools Desktop CNC Milling Machine.

Features:

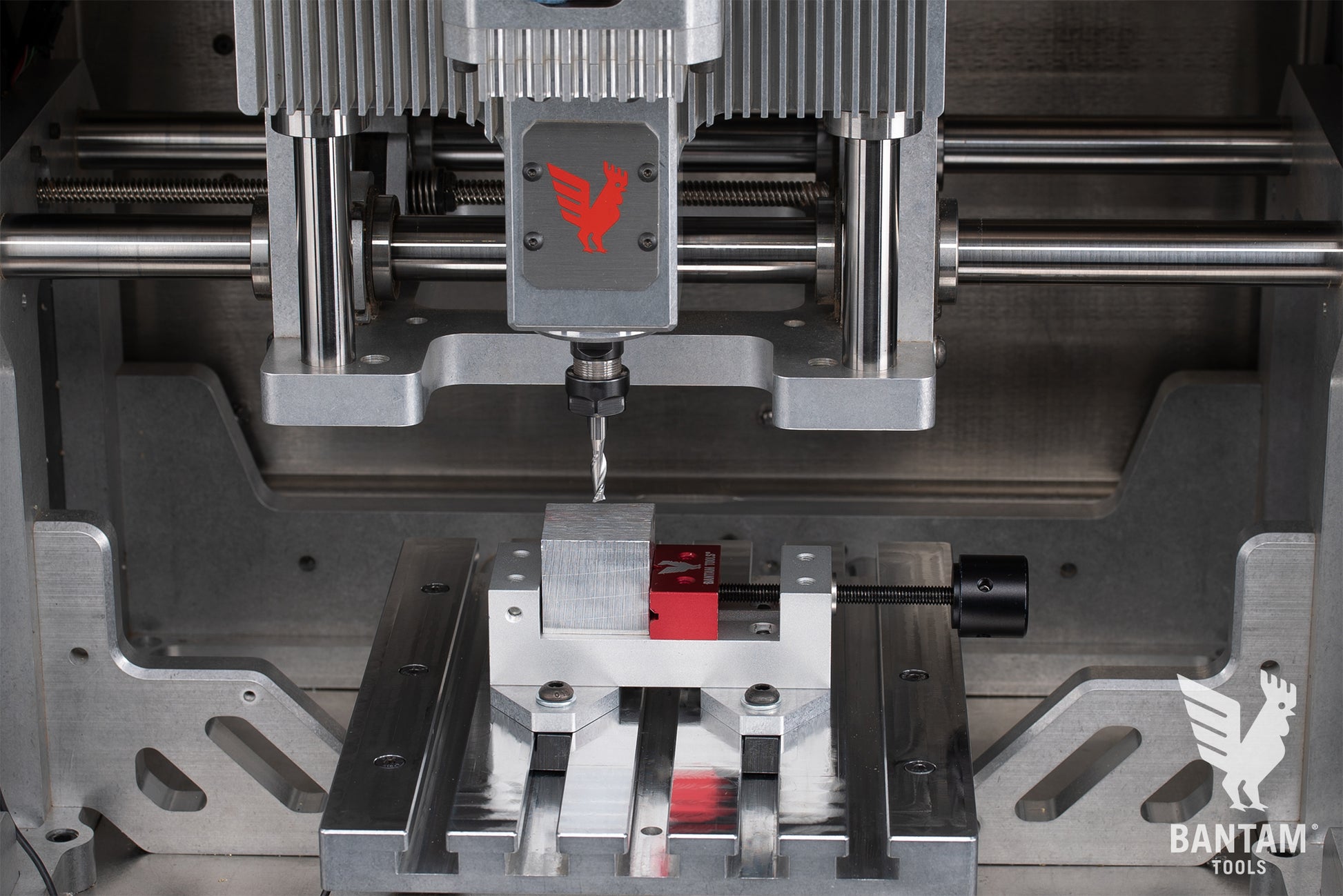

• Compatible with the T-slot bed that comes with every Bantam Tools Desktop CNC Milling Machine

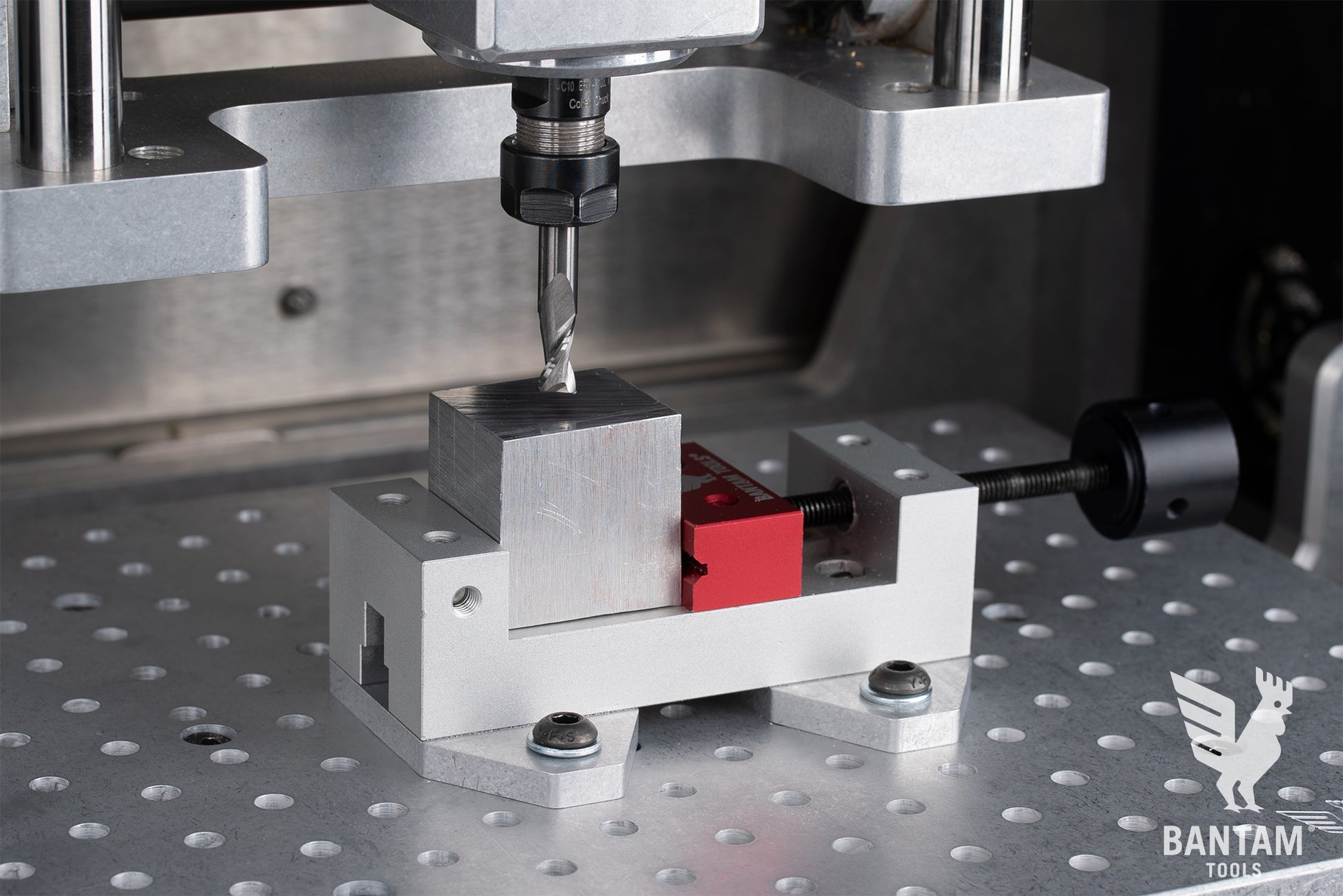

• Compatible with the Bantam Tools Desktop CNC Fixturing Pallet
• Compatible with automated probing routines in the Bantam Tools Milling Machine Software

Specifications:

• Overall dimensions with clamp closed: 4.9” x 3.1” x 1.6” (125.5 mm x 80 mm x 40.75 mm)
• Overall dimensions with clamp fully open: 6.8” x 3.1”  x 1.6” (175 mm x 80 mm x 40.75 mm)
• Max material width: 1.9” (50 mm)
• Max material height: 2.67” (67.9 mm)

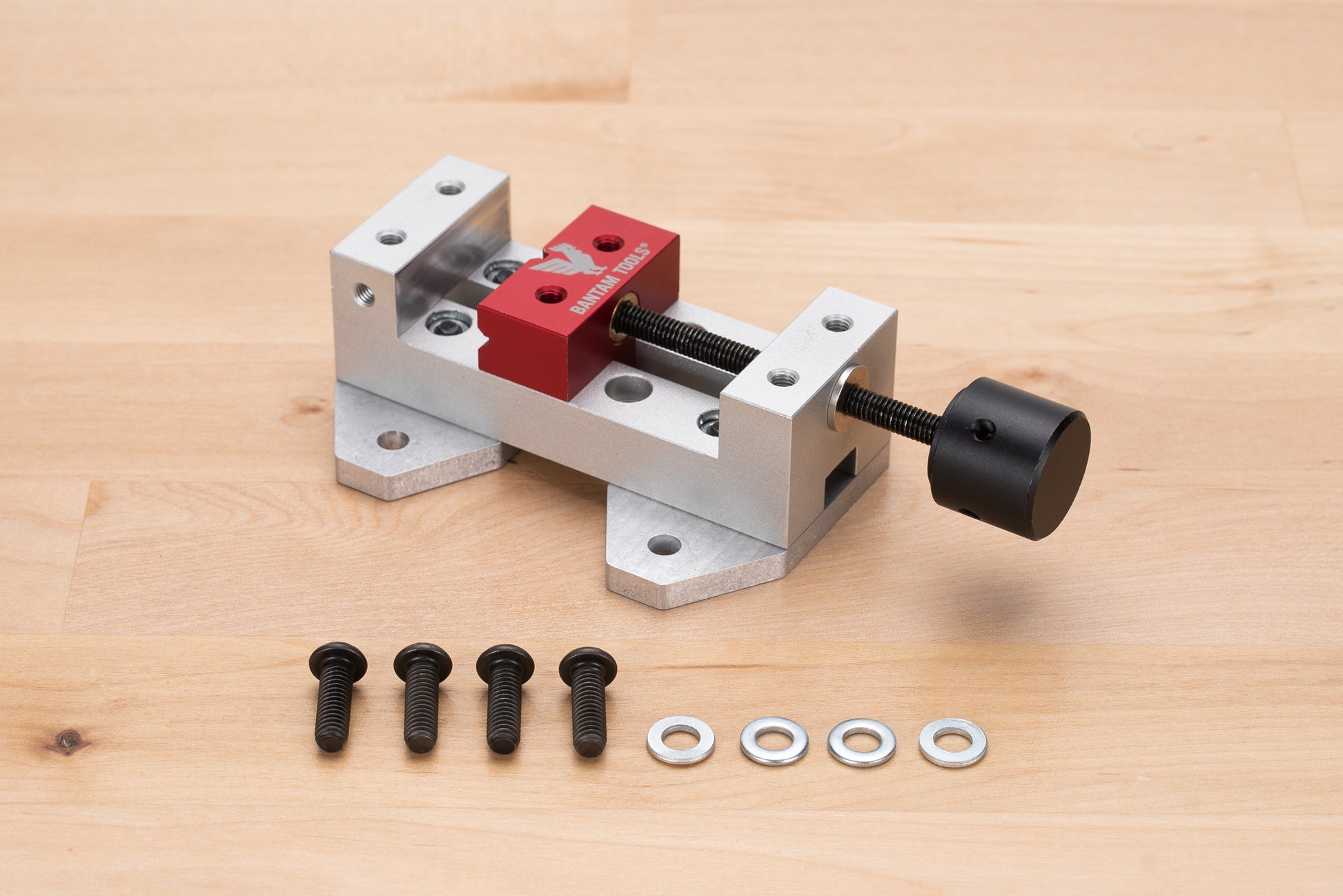

Comes with:

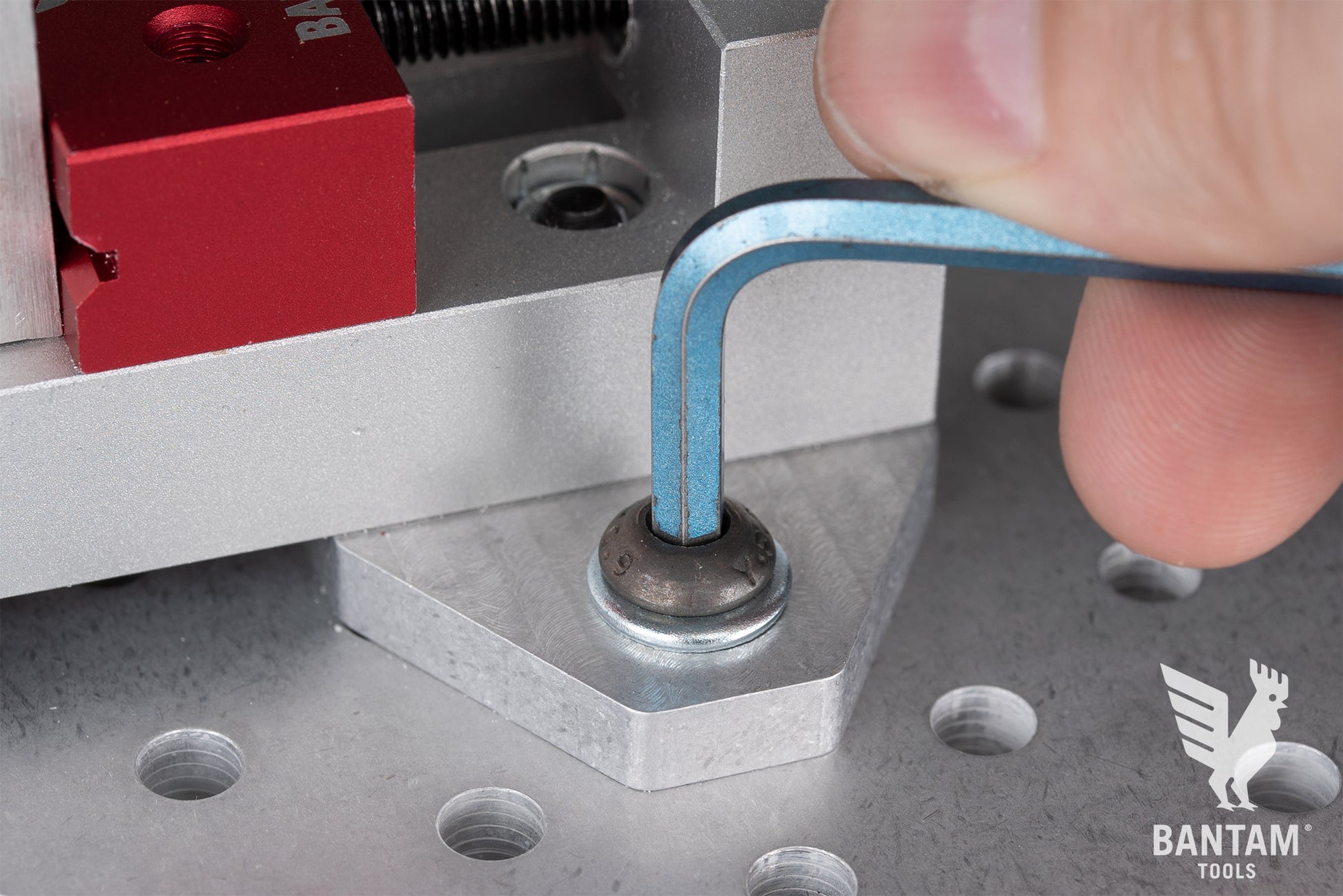

• Screw, M6 x 1, 18 mm (4)
• Steel washer, 6 mm ID, 12 mm OD (4)
